Give your creativity a Glow up
– Mimaki UV Flagship Model for High Image Quality, High Production, and Application Versatility –

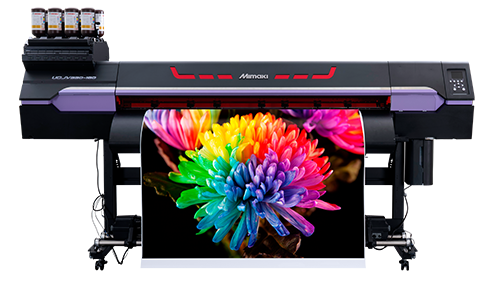

330 Series: Print & Cut UV-LED inkjet printer
“UCJV330 Series” is a Print & Cut UV-LED inkjet printer that combines the high productivity and high image quality of our flagship “330 Series” with our UV printing technology to significantly improve productivity and image quality compared to previous models.
In addition to high image quality and high productivity, this flagship model is equipped with advanced UV-LED technology that only Mimaki can offer.
While inheriting the conventional 2 through 5-layer printing functionality, this is Mimaki’s first roll-to-roll product that supports 2.5D printing.
This machine is equipped with unique features such as watermark printing, made possible only with Mimaki to meet avariety of needs.
Take your sign and graphics to the next level with overwhelmingly high image quality for added value to your business.
Product outlines
- Mimaki UV High Image Quality Technology: 5 Key Points Supporting Mimaki’s High Image Quality
- UV-LED printing requires no drying time for quick delivery
- Realize overwhelmingly high image quality with fast printing speed
- Deliver highly profitable applications with clear ink that further expands creative opportunities
- Mimaki’s UV printers are friendly to both operators and the environment
- Print&Cut: Proven cutting functionality – Supports for Various Output Operations
Cloud-based printer status monitoring tool “PICT”
“PICT” supports customers in improving the efficiency of their printing operations and production management by enabling them to visualize the operational status and performance of their printers from a PC or mobile device, even from a remote location.

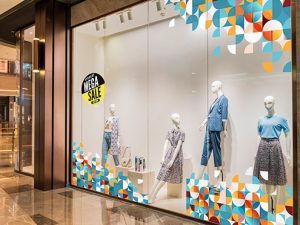

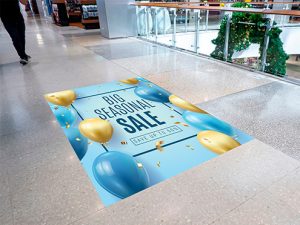

Production Example of UCJV330 Series
Specifications
| UCJV330-130 | UCJV330-160 | ||
|---|---|---|---|
| Print head | On-demand piezo head (2 staggered layout) | ||
| Print resolution | Y: 600, 1200 dpi X: 600, 1200, 1800 dpi | ||
| Print gap | By manual 3 levels (2.0/2.5/3.0 mm) | ||
| Ink | Type/Color | LUS-170：C,M,Y,K,Lc,Lm,W,Cl LUS-175：C,M,Y,K,Lc,Lm,W,Cl *1 LUS-200：C,M,Y,K,W (Plan to support 2023 winter) LUS-190：C,M,Y,K,W (Plan to support 2024 spring) *1 LUS-210：C,M,Y,K,W (Plan to support 2024 spring) *1 |
|
| Capacity | 1L bottle | ||
| Ink circulation | Circulation in damper MCTv2 | ||
| Maximum print width | 1,360mm (53.5″) | 1,610mm (63.4″) | |
| Media | Maximum width | 1,370mm (53.9″) | 1,620mm (63.8″) |
| Thickness | 1 mm or lower | ||
| Roll diameter | φ250 mm or less | ||
| Mountable no. | Standard : 1 roll / Option : 3 rolls (with the Media changer) | ||
| Roll weight | One roll：Max. 45 kg (99.2 lb) or less Three rolls：Total 90 kg (198.4 lb) or less |
||
| Roll inside diameter | 2 inch / 3 inch | ||
| Media cutting | Auto cutting by cutter of head unit *2 | ||
| Cutting function | Cutting speed | Max. 300 mm/s | |
| Acceleration | Max. 0.5G | ||
| Cutting pressure | 10 – 450 gf | ||
| Cutter response times | 10 times/sec | ||
| Repeatability | ±0.2 mm (Excluding shrinkage / expansion caused by the film temperature) | ||
| Interface | Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed | ||
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, KC, UKCA |
||
| Power supply | Single phase AC100-120V±10% /12A or Single phase AC200-240V±10% /6A 50/60Hz±1Hz |
||
| Power consumption | Max.1,440W or less ×1 / 800W (Continuous operation) / 4.5W or less (Sleep mode) | ||
| Operational environment | Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) Recommended temperature: 20–25 °C (68–77 °F) Dust level: General office level |
||
| Dimensions (W x D x H) | 2,640 x 800 x 1,480mm (103.9 x 31.5 x 58.3″) |
2,890 x 800 x 1,480mm (113.8 x 31.5 x 58.3″) |
|
| Machine weight | 217kg (478.4 lb) | 227kg (500.4 lb) | |
*1 Only available in specific countries
*2 Cut shape can be V-shaped cut or straight cut.
Ink set
| LUS-170 ［C,M,Y,K,Lc,Lm,W,Cl］ |
C M Y K |
|---|---|
| C M Y K Lc Lm W | |
| C M Y K W Cl | |
| LUS-175 ［C,M,Y,K,Lc,Lm,W,Cl］ |
C M Y K |
| C M Y K Lc Lm W | |
| C M Y K W Cl | |
| LUS-200 ［C,M,Y,K,W］ |
C M Y K |
| C M Y K W |
- Some of the screens and printing samples in this website are artificial renderings.
- Specifications are subject to change without notice.
- All trademarks or registered trademarks are the property of their respective owners.
- Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.
Precautions for UV printing
Inks and substrates:
- Please note that properties and adhesion, weather resistance etc. of ink and substrates can vary. Therefore please test materials before printing.
- Some substrates require primer before printing. Please test materials beforehand or ask your sales representative.
Safety notice:
You are dealing with UV light sources that may harm your health. Please follow below guidelines strictly:
- Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
- Depending upon print mode, there might occur some VOC emittance from printed parts not yet cured and hardened.
- In addition, please read the instructions and guidelines of the manual carefully and follow those.
Model
| UCJV330-130 | Maximum print/cut width: 1,360 mm (53.5″) |
|---|---|
| UCJV330-160 | Maximum print/cut width: 1,610 mm (63.4″) |
