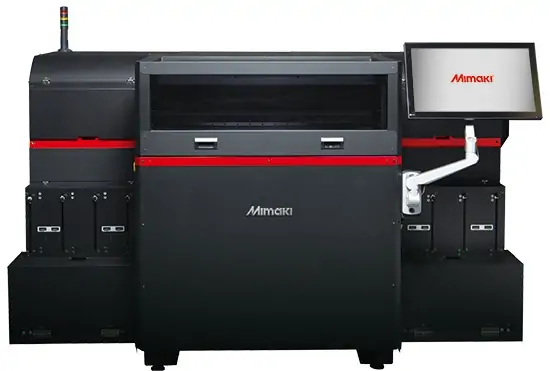

Mimaki 3DUJ-553

Photorealistic Color Accuracy

Mimaki offers the world’s first*1 3D printer
with more than 10 million colors and UV-curable inkjet printing!

The 3D printer market growth continues to spread globally upon commencing from North America and Europe and its application is mainly entered in manufacturing industry and then penetrating to education, construction and medical business segment.
Mimaki 3D printer [3DUJ-553] has achieved the full color modeling with the capability of world first*1 over 10 million colors based on our developed technology of 2D inkjet printers of professionals use.
We will propose a new business utilizing [3DUJ-553] as its having rich color expression is better suited to create a final product such as real object sign or building model, of which an extra coloring has been difficult after the completion of modeling.

Mimaki 3DUJ-553

Product outlines


  1. The world’s first model of full color printing more than 10 million color tones
  2. Remarkable expressive power for elaborate modeling by Mimaki’s concentrated technologies
  3. Excellent post process performance by availability of over coating and drilling
  4. Usability in pursuit of “easy fabrication”
  5. Secured operation support to minimize losses



Figure

Photorealistic, high definition modeling with more than 10 million colors can be used for the production of figures and prototyping of toys.
With the 3DUJ-553, it is possible to faithfully reproduce full color models with complex shapes that would be impossible to color through traditional methods, and look identical to their 3D data counterpart.

Figure

Mimaki proposal for Industrial products market

[3DUJ-553] can satisfy professionals exacting requirement to make full color and fine modeling of strong preference into the details and final products and mock-up.
And the post processing like over coating and attachment of screws is also able to apply to an object after modeling.

Mimaki proposal for Industrial products market

Architectural Modeling

Partial transparency such as representation of glass windows and transparent exteriors are convenient means of show the internal structure of models. This effect is difficult to achieve with handcrafted models or plaster-based 3D printer outputs.
Partial transparency can be applied to architectural models, combining the exterior and interior structures.

Architectural Modeling

Medical Modeling

Full-color 3D printing is suitable for the creation of color-coded organ models. Translucent color (transparent with added color) expressions are also capable of visualizing the interior of organs, which will be favorable as practical medical models.

Medical Modeling

Mimaki proposal for Sign Graphics market

Object signage by 3D printer is considerably effective to be remarked and understood easily with its presence by the combination of realistic 3 dimensional motif and 2D image. [3DUJ-553] can express by more than 10 million different full colors and as well enhance the color reproducibility with the color adjustment employing the color profiles.

Mimaki proposal for Sign Graphics market



Production Example of 3DUJ-553



Specifications

3DUJ-553
Modeling method UV curable inkjet
Available color number Full color
More than 10 million different colors
Print head On-demand piezoelectric print head (8 head inline)
Ink Type/Color Modeling ink: MH-100 (C, M, Y, K, White, Clear)
Modeling ink: MH-110 (Pure Clear)
Support material ink: SW-100
Tank volume C, M, Y, K: 3L
White, Clear, Pure Clear, Support material: 5L
Supply style C, M, Y, K: 1L bottle
White, Clear, Pure Clear, Support material: 4.8L bottle
Available modeling area
(W × D × H)
508 × 508 × 305 mm (20 × 20 × 12 in) *1
Load capacity
(Weight of modeled object)
70 kg (154.3 lb) or less *1
Minimum layer pitch 20 μm
3D data format STL, OBJ, VRML, PLY, 3MF
Software
(Standard accessories)
Layout software [Mimaki 3D Link]
Interface Ethernet 1000BASE-TX
Power supply Single phase AC 100-120V/220-240V±10%, 50/60Hz±1Hz x3
Power
consumption
Printer 1300 W or less
External PC 300 W or less
Touch panel 30 W or less
Safety standard VCCI Class A / FCC Class A / Compliant with UL60950, ETL /
CE Marking (EMC, Low Voltage Directive) /
CB Report / RoHS / REACH
Installation environment Temperature 15 – 35 °C (59 – 95 °F)
Relative humidity 35 – 60 %Rh (Non condensing)
Recomended Temperature 20 – 25 °C (68 – 77 °F)
Dust Places without mine dust (Dust amount 0.15mg/m³ or less) *2
Dimensions (W × D × H) 2,250 × 1,500 × 1,550 mm (88.6 × 59.1 × 61.0 in)
Weight 600kg (1322.8 lb)

3DUJ-553 Application example catalog (2.4MB)

3DUJ-553 Catalog (4.48MB)
