Graphtec CE7000 Series

ENGINEERED FOR HIGHER PRODUCTIVITY

The Graphtec CE7000 Series is the perfect solution for those looking to increase production with greater efficiency for: SIGNAGE GRAPHICS • PRINT & CUT GRAPHICS • POP & PACKAGING • AUTOMOTIVE MARKETS and many more….

CE7000 FEATURES:

• NEW 8.0 ARMS for Fast & Accurate PRINT & CUT Applications

• DATALINK Bar Code Feature for Maximum Productivity

• NEW USB Thumb Drive Connectivity – NO Computer Needed!

The CE7000 Series also boasts our popular cutting channel feature to allow easy PERFORATED CUT or THROUGH CUT operations.

The CE7000 Series comes complete with our full complement of Graphtec Software along with Ethernet Connectivity.

Software includes Cutting Master 4 plug-in for Adobe & Corel Users and our popular Graphtec Pro Studio software for design & cut graphics. The CE7000 series works with both PC and MAC platforms, or use the handy new USB Thumb Drive Port if needed.

Graphtec makes everything EASY

A BROAD-BASED CUTTER FOR MANY APPLICATIONS

Specifications

ItemCE7000-40CE7000-60CE7000-130CE7000-160
(Not available in US & Korea)
ConfigurationGrit rolling type
Drive methodDigital servo drive
Max. cutting area (W x L) (*1)375mm × 50m603mm × 50m1270mm × 50m1524mm × 50m
Cutting area of guaranteed accuracy (*1)
(When using optional basket)
355mm × 2m583mm × 2m
(583mm × 5m)
1250mm × 2m
(1250mm × 5m)
1504mm × 2m
(1504mm × 5m)
Mountable media widthMin.50mm

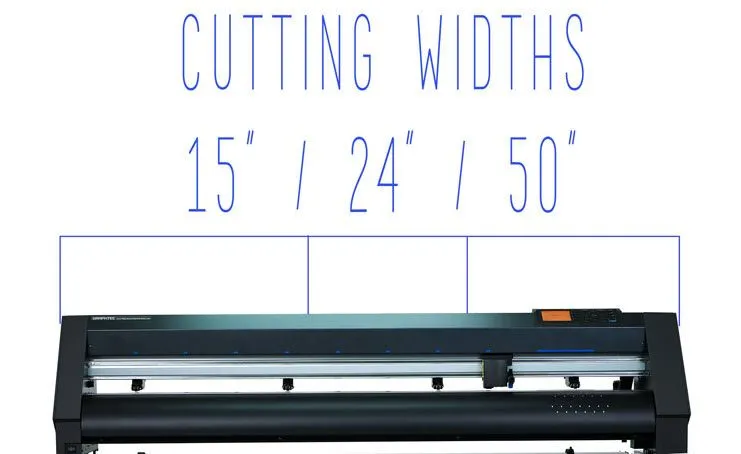

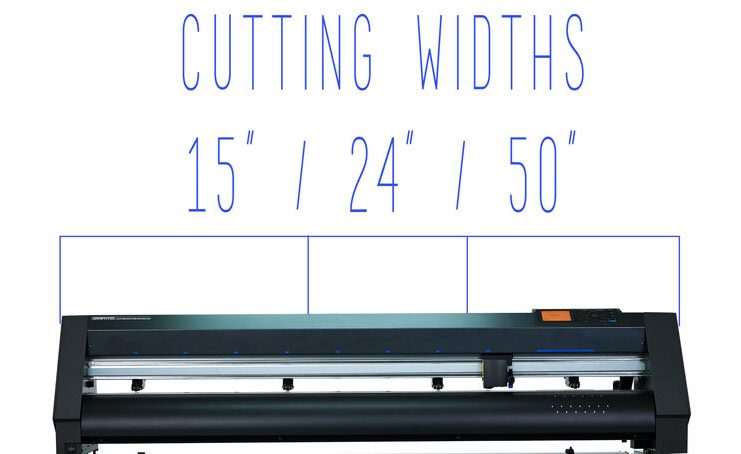

Max.484mm (19inch)712mm (28inch)1372mm (54inch)1626mm (64inch)
Mountable roll media mass5 kg9 kg17 kg20 kg
Number of push rollers2 rollers4 rollers (Max. 5 (option))
Max. cutting speed600mm/s
at all direction
900mm/s
at 45° direction
1000mm/s at 45° direction
Acceleration21.2m/s2at 45° direction13.9m/s2at 45° direction
Cutting forceMax. 4.41N (450gf)
Minimum character sizeApprox. 5 mm alphanumeric (varies depending on character font and media)
Mechanical resolution0.005mm
Programmable resolutionGP-GL:0.1/0.05/0.025/0.01mm HP-GL™ (*2):0.025mm
Repeatability (*1)Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
Mountable number of tools1 tool
Blade typesSupersteel
Pen typesOil-based ballpoint pen, Water-based fiber-tip pen
Media typesUp to 0.25mm thickness
Marking film (PVC / fluorescence / reflection), polyester film (With specified conditions)
InterfaceUSB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory2MB
Command setsGP-GL / HP-GL™ (Set by command or auto-detect) (*2)
DisplayGraphic type LCD with back-light (240dots x 128dots), supports 10 languages
Power source100V to 240V AC, 50 / 60 Hz
Power consumptionUp to 100W
Operating environment10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
External dimensions
(approx. W x D x H)
(with basket)
772x292x313 mm1005×582×1092 mm
(1005×936×1092 mm)(*3)
1704×811×1215 mm
(1704×1148×1215 mm)(*3)
1916×811×1215 mm
(1916×1148×1215 mm)(*3)
Supported software (*4)
Graphtec Studio 2, Cutting Master 5, Windows Driver,
Graphtec Pro Studio(Windows)(*5), Graphtec Studio(Mac), Cutting Master 4(*5)
  1. Operated with Graphtec specified cutting condition and media. For long-length cutting, the basket is used.
  2. HP-GLTMis a registered trademark of Hewlett-Packard Company.
  3. When equipped with the stand.
  4. Graphtec does not support software/driver used with operating systems that have become obsolete and are no longer supported by the OS developer.
  5. It requires an Internet connection in order for activation or registration when starting the software for the first time.

Dimensions

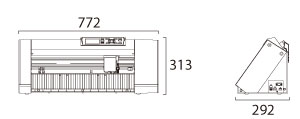

CE7000-40

Dimension product_ce7000-img007

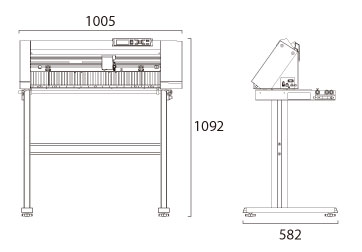

CE7000-60

Dimension product_ce7000-img008

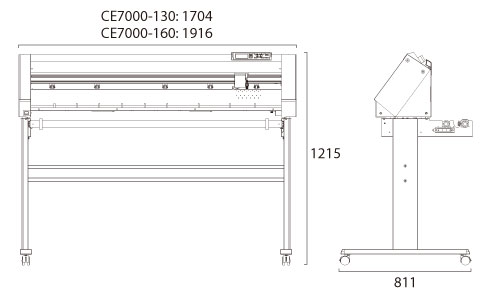

CE7000-130 / 160

Dimension product_ce7000-img009

Includes stand.
Tolerance : +/- 5 mm
