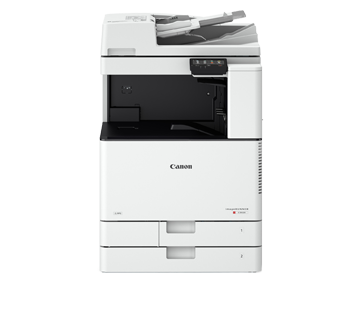

CANON iR – C3020 (EOL)

Canon iR-C3120 hadir untuk menggantikan Canon IR C3020

CANON iR – C3020 (EOL)

Canon IR C3020hadir dengan tampilan dan desain yang sederhana namun tetap berfungsi untuk memberikan produktivitas kerja dan keamanan kerja yang lebih baik ke alur kerja harian pengguna dengan mempermudah pengoperasian. Dengan teknologi warna V2, standar Wi-Fi dan Direct Access Point, nikmati hasil cetak warna berkualitas dengan koneksi mulus

  • Duplex ADF
  • Mobile Print Capabillity
  • Direct Print dari USB ( PDF Format )
  • Copy / Print Speed B/W & Color : 20 ppm
  • Scan Speed B/W & Color : 55 ipm
  • Maksimal Ukuran Kertas A3
  • Maksimal Media Hingga 300 gsm
  • Custom Size Up to SRA3
  • Departement ID
  • Standard Wireless LAN
  • Full LCD Touchscreen Panel, including numeric panel
  • Full Color ( C, M, Y, K )

Main Unit
Machine TypeColour Laser Multifunctional
Core functionsPrint, Copy, Scan, Send, Store and Optional Fax
ProcessorCanon Dual Custom Processor (Shared)
Control Panel5 inch TFT LCD WVGA Colour Touch panel
MemoryStandard: 2.0GB RAM
Interface ConnectionNETWORKStandard: 1000Base-T / 100Base-TX / 10Base-T, Wireless LAN (IEEE 802.11 b/g/n);
Optional: NFC
OTHERSStandard: USB 2.0 (Host) x2, USB 2.0 (Device) x1;
Optional: Copy Control Interface
Paper Capacity (A4, 80/m²)Standard:1,200 Sheets
Maximum:2,300 Sheets
Paper Source (A4, 80/m²)Standard:Two 550-sheet paper cassettes
100-sheets Multi Purpose Tray
Optional:Dual 550-sheet paper cassettes (CASSETTE FEEDING UNIT-AP1)
Maximum:2,300 Sheets
Paper output capacity (A4, 80/m²)Standard:250 Sheets
With Inner Finisher:600 sheets *INNER FINISHER-K1
Finishing capabilitiesStandard:Collate, Group
With Inner Finisher:Collate, Group, Offset, Staple, Staple-Free Staple, Staple-on-Demand
Supported media sizesCassette 1:Standard size: A4, B5, A5R
Envelopes: ISO-C5
Custom Size: 139.7 x 182mm to 297 x 215.9mm
Cassette 2:Standard size: A3, B4, A4, B5, A4R, A5R
Envelopes: No.10 (COM10), Monarch, DL
Custom Size: 139.7 x 182mm to 304.8 x 457.2mm
Cassete 3/4 (CASSETTE FEEDING UNIT-AP1):Standard size: A3, B4, A4, A4R, B5R, B5, A5R
Custom Size: 139.7 x 182mm to 304.8 x 457.2mm
Multi-purpose tray:Standard size: A3, B4, A4, A4R, B5R, B5, A5, A5R, SRA3
Custom size: 98.4 x 139.7mm to 320 x 457.2mm
Envelopes: No.10 (COM10), Monarch, ISO-C5, DL
Supported Media WeightsCassette 1,2:52 to 220g/m²
Cassette Feeding Unit:52 to 220g/m²
Multi-purpose tray:Coated paper: 52 to 256g/m²
Heavy Paper: 52 to 300g/m²
Duplex:52 to 220g/m²
Warm-up TimeFrom Power On:30 Seconds or Less
From Sleep Mode:10 Seconds or Less
Dimensions (W x D x H)DADF-AV1:565 x 664 x 880mm
PLATEN COVER TYPE W:565 x 635 x 777mm
Installation Space(W x D)Basic:978 x 1,117mm (when attach with DADF-AV1 + Multi-purpose tray extension extended + Cassette open)
978 x 1,088mm (imageRUNNER C3020 + Multi-purpose tray extension extended + Cassette open)
Fully Configured:1,110 x 1,117mm (when attach with imageRUNNER C3020 + INNER FINISHER-K1 + Multi-purpose tray extension extended + Cassette open)
WeightApprox. 69.8kg including toner (when attach with DADF-AV1)
Toner (Estimated Yield @ 5% Coverage)Black: 36,000
Colour: 19,000
Drum Yield54,000
Print Specifications
Printing methodColour Laser Beam Printing
Print Speed (BW/CL)20ppm (A4), 15ppm (A3)
Print Resolution600 x 600dpi, 1200 x 1200dpi
Page description languagesUFR II (Standard), PCL 6, Adobe PS3 (Option)
Double Sided PrintingAutomatic (Standard)
Direct PrintDirect printing available from USB memory key
Supported file types: TIFF, JPEG, PDF and XPS.
FontsPCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Barcode fonts*

PS fonts: 136 Roman
*Require optional BARCODE PRINTING KIT-D1

Operating SystemUFRII:Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 / Server 2016, MAC OS X (10.7.5 or later), Linux
PCL:Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 / Server 2016
PS:Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 / Server 2016, MAC OS X (10.7.5 or later)
PPD:MAC OS 9.1 or later, MAC OS X (10.3.9 or later), Windows Vista / Windows 7 / Windows 8 / Windows10
Copy Specifications
Copy Speed (BW/CL)20ppm (A4), 15ppm (A3)
First-Copy-Out Time (BW/CL)Approx. 5.9 / 8.2 seconds or less
Copy resolutionReading:600 x 600dpi
Multiple CopiesUp to 999 copies
Copy ExposureAutomatic or Manual (11 Levels)
Magnification25 – 400% (1% Increments)
Scan Specifications
TypeColour Platen and Duplexing Automatic Document Feeder
Supported media size/sDADF-AV1:A3, B4, A4R, A4, B5R, B5, A5R, A5, B6
Pull Scan SpecificationsColour Network ScanGear2. For both TWAIN and WIA
Supported OS: Windows Vista / 7 / 8 / 8.1 / 10
Scan Resolution300 x 300dpi, 600 x 600dpi
Scan MethodSend, Scan to USB, Pull scanning
Document Feeder Paper CapacityDADF-AV1:100 Sheets (80g/m²)
Double sided scanning2-sided to 2-sided (Automatic)
Send Specifications
DestinationE-mail / Internet FAX (SMTP), SMB, FTP, Super G3 FAX(Optional)
Colour ModeAuto Colour Select (Full Colour, Grayscale),
Auto Colour Select (Full Colour/ Black-and-White)
Full Colour, Grayscale, and Black-and-White
Address BookLDAP (5) / Local (300) / One-touch (281)
Send resolution300 x 300dpi
Communication protocolFile: FTP, SMB v3.0
E-mail / I-Fax: SMTP, POP3, I-Fax (Simple)
File FormatStandard: TIFF, JPEG, PDF(Compact, Searchable)
Optional: PDF(Encrypted, Digital Signature)
Fax Specifications
Optional / StandardOptional on all models
Maximum Number of Connection Lines1
Modem SpeedSuper G3: 33.6kbps
G3: 14.4kbps
Compression MethodMH, MR, MMR, JBIG
Resolution400 x 400dpi, 200 x 400dpi, 200 x 200dpi, 200 x 100dpi
Sending / Recording SizeA5* and A5R* to A3

*Sent as A4

FAX memoryUp to 512 pages
Speed dialsMax. 281
Group dialsMax. 299 dials
Security Specifications
AuthenticationStandard: Department ID Authentication, uniFLOW connectivity
Environmental Specifications
Operating EnvironmentTemperature:10 to 30°C (50 to 86°F)
Humidity:20 to 80% RH (no condensation)
Power source220 – 240V (±10%), 50 / 60Hz (±2Hz), 4.0 Amp
Power consumptionMaximum:Approx. 1.5kW
Standby:Approx. 33.6W*

* Reference Value

Sleep mode:Approx. 2W (Wireless LAN power save mode:OFF), 1W (Wireless LAN power save mode:ON)
